360w 370w 390w 400w 430w Solar Photovoltaic Panels Half Cell

Ask Lasest Price
Brand Name :	Bright
Model Number :	BR-SP-400
Certification :	TUV/IEC61215/IEC61730/CEC/CE/PID/ISO
Price :	USD0.30-0.38/watt
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	50000pcs/month
Delivery Time :	15-25 days after receiving 50% deposit

Add to Cart

Product Details
Company Profile

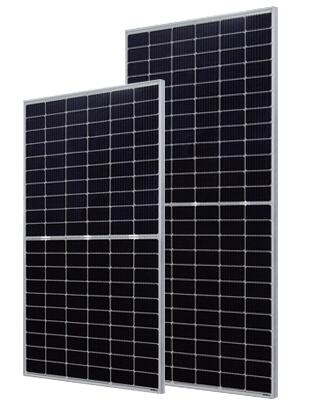

360w 370w 390w 400w 430w Solar Photovoltaic Panels Half Cell

solar photovoltaic panels half cell 360w 370w 390w 400w 430w 440w 445w 450w 500w solar panel

Product description

Also called solar panels, a solar module is a single photovoltaic panel that is an assembly of connected solar cells. The solar cells absorb sunlight as a source of energy to generate electricity. An array of modules are used to supply power to buildings.

The three types of solar panels are monocrystalline, polycrystalline, and thin-film solar panels. Each of these types of solar cells is made in a unique way and has a different aesthetic appearance.

Product parameter

MECHANICAL DATA
Module Dimensions	1776105235mm / 2094103835mm
Weight	18.9kg / 23.5kg
Junction-Box	IP 67 or IP 68 rated
Cables	4.0mm²
Cell Orientation	12 cells(6*2)

ELECTRICAL CHARACTERISTICS
Minimum performance at standard test conditions, stc1 (power tolerance 0~+5w)
Model			360W	365W	370W	375W	380W
Max. Power	PMPP	[W]	360	365	370	375	380
Open Circuit Voltage	Voc	[V]	40.5	40.7	40.9	41.1	41.3
Short Circuit Current	Isc	[A]	11.35	11.43	11.52	11.60	11.69
Max. Power Voltage	Vmp	[V]	34.0	34.2	34.4	34.6	34.8
Max. Power Current	Imp	[A]	10.59	10.69	10.76	10.84	10.92
Efficiency²	η	[%]	19.8%	20.0%	20.3%	20.6%	20.9%

ELECTRICAL CHARACTERISTICS
Minimum performance at standard test conditions, stc1 (power tolerance 0~+5w)
Modle	435W	440W	445W	450W	455W
Max. Power (W)	435	440	445	450	455
Open Circuit Voltage (V)	48.7	48.9	49.1	49.3	49.5
Short Circuit Current (A)	11.39	11.46	11.53	11.60	11.66
Max. Power Voltage (V)	40.9	41.1	41.3	41.5	41.7
Max. Power Current (A)	10.64	10.71	10.78	10.85	10.92
Efficiency²	20.0%	20.2%	20.5%	20.7%	20.9%

Main features

EVA Sealed Film

*Top quality EVA sealed film in China *Resistance in both high and low temperatures

*Sealed adhesive durability more than 30 years

Laser Half Cut Cell

*Solid PID resistance ensured by solar cell

*process optimization and careful module BOM selection

*Laser accurately cut

* Both 6BB&9BB available

Junction Box

*Standard photovoltaic cable, dedicated photovoltaic MC4 connector

*Waterproof grade IP68

*Good heat dissipation performance, low loss, long service life

Aluminum frame

Heavy thickness anodized aluminum alloy, passed the salt spay test, for long-term outside use.

Delivery & Payment Terms

Payment Terms	T/T	EXW	30% in advance for deposit payment, the balance payments will be paid before shipment.
		FOB
		CFR/C&F	30% in advance for deposit payment, the balance will be paid against copy of B/L
		CIF
	L/C	For the amount of one shipment above 50,000 usd, L/C at sight is acceptable.
	West Union	For the amount less than 5000 usd
	Paypal
Delivery Time	7~25 days after receiving the payment or the deposit payment
