Xiamen Bright New Energy Co., Ltd. Bright the world, New energy we all want.
6 Years
| Ask Lasest Price | |
| Brand Name : | Bright |
| Model Number : | BR-SP-300 |
| Certification : | CE, ROHS, ISO9001 |
| Price : | USD55.80-65.51/pc |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 30000pcs/month |
| Delivery Time : | 15-25 days after receiving 50% deposit |

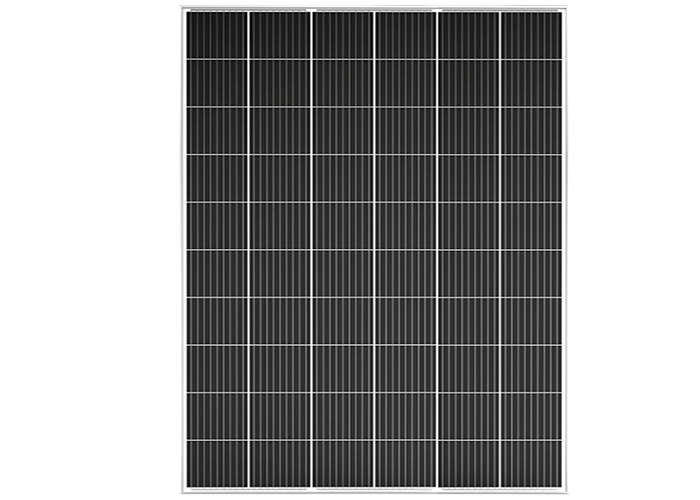

Grade A Aluminum Frame Solar Panel 300W/30V TUV Monocrystalline PV Module 60 Cells
| Product Name: | MONO SOLAR PANEL 300W | Appliant: | on/off grid |
| Size Of Panel: | 1650*992 | Solar Cells Style: | 159*159 |
| Solar Cells Array: | 6*10 | Max Output Power: | 300W |
| Standard: | CE/UL/TUV | Grade: | A Grade |
| Working curre | 10A | ||
| Working voltage: | 30V |
Detailed Product Description
>90% Higher Transmittance EVA,Higher GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer Durability.
21kV High-Voltage Breakdown14 Test, Better Durability Withstand Fire/Dust/UV/Tear Tests For Super Isolation Back Sheet,Multi-layer Structure.
12% Ultra Clear Tempered Glass.
30% Lower Reflection
Detailed Product Description
22% Higher Efficiency,5BB Cells
93 Fingers PV Cells, Anti-Pid
120N Tensile Strength Frame
110% Seal-lip Design Glue Injection
(Black/Silver Optional)
IP67 Waterproofness Junction Box
Innovative Full-Glue-Filled
Waterproof Labels
OEM Optional
Features
High module conversion efficiency up to 17% through innovative manufacturing technology. Manufacturing
with CE standard, could widely used in solar power station, building, solar street lighting, traffic. etc.
Solar panel is made up of high quality solar cell with high effciency and transmission rate, low iron tempered
glass, anti-aging EVA, high flame resistant TPT and anodized aluminum alloy.
Specification
| Type | BR-SP-300W |
| Mono or Poly | Mono |
| Maximum power (Wp) | 300 |
| Maximum Power voltage (V) | 30 |
| Maximum Power current (A) | 10 |
| Open circuit voltage (V) | 38 |
| Short circuit current (A) | 10.5 |
| Number of cells (Pcs) | 60 |
| Size of module (mm) | 1650*992*35mm |
| Temperature coefficients of Pm (%) | -0.47%/℃ |
| Temperature coefficients of Isc (%) | -0.35%/℃ |
| Temperature coefficients of Voc (%) | 0.05%/℃ |
| Temperature Range | -40℃-85℃ |
| Tolerance Wattage (e.g. +/-5%) | ±3% |
| Weight per piece (kg) | 20kg |
| Frame (Material, Corners, etc.) | Aluminum |
| Standard Test Conditions | AM1.5 1000W/m2 25℃ |

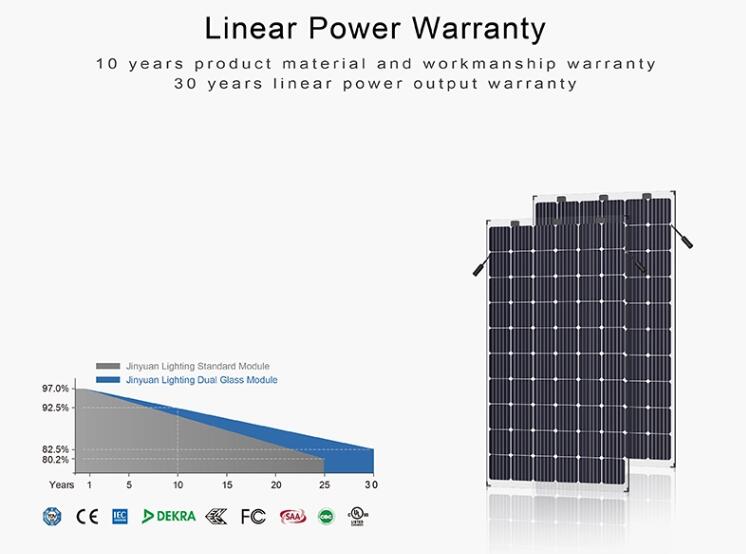

| Warranty | 10 years product warranty and 30 years 80% of power |

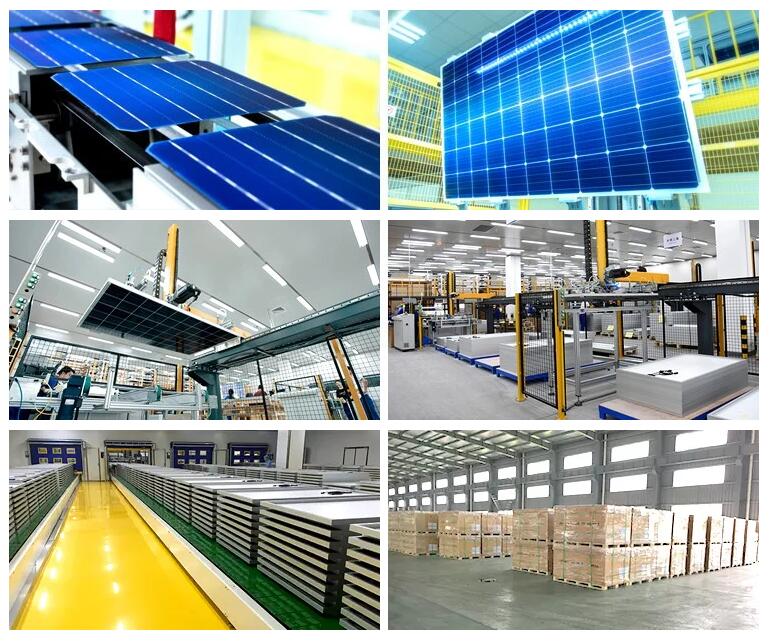

Real pictures
Why choose us?
1. Excellent efficiency, Easy Installation & Maintenance
2. Outstanding performance in Low-Light
3. High transparent, Low-Iron, Tempered Glass
4. Ability to withstand High Wind-Pressure and Snow-Load
5. Advanced module sealing technology to eliminate leakage and frame deformation
6. Ability to meet customized customer's specific requirements
|
|
