High Frequency MPPT Solar Inverter , 5kw 5.5kW Off Grid Hybrid Solar Inverter

Ask Lasest Price
Brand Name :	Bright
Model Number :	MPS-V-PLUS
Certification :	CE, ROHS, ISO9001
Price :	USD400.29-470.93
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	10000sets/month
Delivery Time :	15-25 days after receiving 50% deposit

Add to Cart

Product Details
Company Profile

High Frequency MPPT Solar Inverter , 5kw 5.5kW Off Grid Hybrid Solar Inverter

off Grid Hybrid MPPT Solar Inverter 5.5kVA 5kVA/High Frequency 5kw 5.5kwoff Grid Hybrid Pure Sine Wave Inverter

Product Parameters

RATED POWER	1000VA / 800W	2000VA/ 1600W	3000VA / 2400W	4000VA / 3200W	5000VA / 4000W
INPUT
Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range	50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	230 VAC ± 5%
Surge Power	2000VA	4000VA	6000VA	8000VA	10000VA
Efficiency (Peak)	90%	93%
Transfer Time	10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform	Pure sine wave
BATTERY
Battery Voltage	12 VDC	24 VDC		48 VDC
Floating Charge Voltage	13.5 VDC	27 VDC		54 VDC
Overcharge Protection	15 VDC	30 VDC		60 VDC
Maximum Charge Current	10 A or 20 A	20 A or 30 A		60 A
SOLAR CHARGER (OPTION)
Charging Current	50 A / 60A
Maximum PV Array Open Circuit Voltage	30 VDC	60 VDC		105 VDC
Standby power Consumption	1 W	2 W		2 W
PHYSICAL
Dimension, D x W x H (mm)	95 x 240 x 316	100 x 272 x 355		125 x 297.5 x 468
Net Weight (kgs)	5.0	6.4	6.9	9.8	9.8
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	0°C - 55°C
Storage Temperature	-15°C - 60°C

Product description

Solar pv inverters is an electronic system that operates the photovoltaic(PV) modules in a manner that allows the modules to produce all the power they are capable of. The solar mate charge controller is a microprocessor-based system designed to implement the MPPT. It can increase charge current up to 30% or more compared to traditional charge controllers.

Features

High efficiency pure sine wave inverter
Wide PV input range

Built in 80A MPPT solar charger

Solar energy is provided directly to the load first

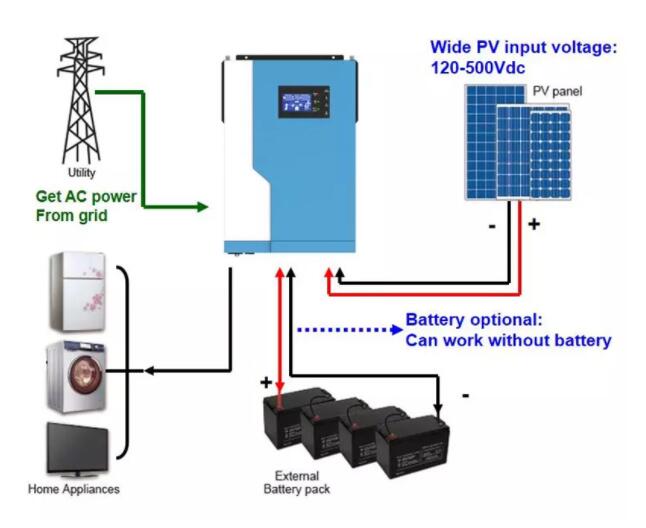

Pictures

FAQ

1. Q: Can I have sample before formal order?

A: Sure, it will be warmly welcomed.

2. Q: What's the warranty:
A: 24 months for free.

3. Q: What's the payment methods?
A: Usually we accept T/T (Telegraphic Transfer)

4. Q: OEM is available?
A: Yes, OEM is welcomed.
