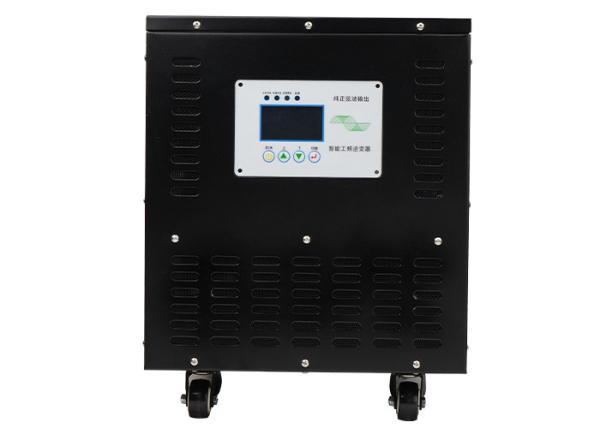

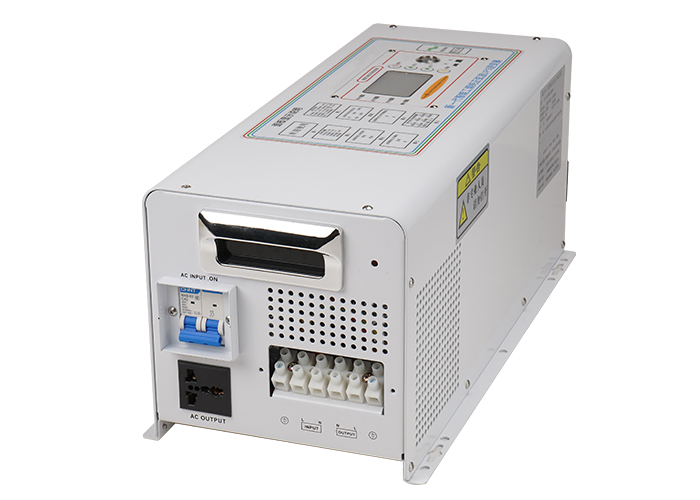

7kw pure sine wave DC AC 220vac pure sine wave solar panel power
system frequency inverter with charger for home
| Mode | BR-IN-1000 | BR-IN-1500 | BR-IN-2000 | BR-IN-3000 | BR-IN-4000 | BR-IN-5000 | BR-IN-6000 | BR-IN-7000 |
| rated power | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | 7000W |
| peak power | 3000W | 4500W | 6000W | 9000W | 12000W | 15000W | 18000W | 21000W |
| Input | Voltage | wide input voltage range(130V-280V AV) or narrow input voltage
range(160V-260V) is optional |
| Frequency | 45-65Hz |
| Ouput | Voltage | AC220V±3%(battery mode) |
| Frequency | 50/60Hz±1%(battery mode) |
| Output waveform | Sine wave |
| Efficiency of the whole machine | ＞85% |
| Battery type | Lead-acid,lithium-iron,gel,ternary and customized |
| Nominal voltage of external battery | 12/24/48VDC | 12/24/48VDC | 24/48VDC |
| Max charging current of mains supply | 80A(12VDC),40A(24VDC), 20A(48VDC) |
| Protection | Overloaded,short-circuit, over-temperature, over/low voltage of battery,
over/low voltage of mains supply protection |
| Conversion mode | Interactive 5MS(typical) |
| Overload capacity | Maintain 60 seconds when 110%-120%, maintain 10 seconds when 150% |
| Communication interface | RS-232(optional) |
| Operating environment | Temperature | 0-40℃ |
| Humidity | 10%-90% |
| L*W*H(mm) | 370*210*170mm | 485*230*210mm | 540*285*210mm |
| N.W(KG) | ? | ? | 16 | 21 | 27 | ? | ? | ? |
Product description
The DC-AC inverter modules are based on full digital and
intelligent design. It adopts the advanced SPWM technology, outputs
the pure sine wave and converts 24/48VDC to 220/230VAC suitable for
AC loads of household appliances, electric tools, commercial units,
electronic audio and video devices etc.
Product detailed description

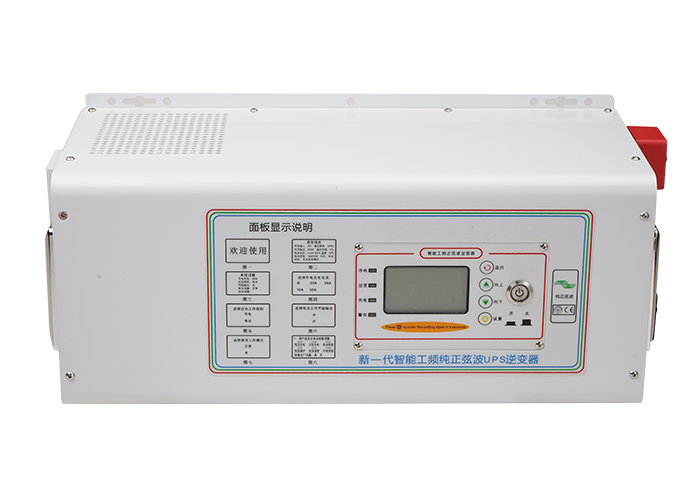

The product adopts 4.2 inch LCD display design, which real-time
displays the operational data and running state of the system. The
comprehensive electronic protection function guarantees more safe
and more stable operation of the system.
Features
High Yield
High power density, offer lighter and easy installation
Real Time Monitoring(Flexible communication connection, support
RS485, WiFi, GPRS)
Small size, Light weight
Warranty:5 years/10 years
Advantages:
Compared with the high-frequency inverter and the power frequency
inverter, the power frequency inverter has the complementary
function of the city power, the UPS uninterrupted power supply
function; the electrical appliances are constantly powered. Because
the built-in high-power transformer (low-frequency transformer)
isolates the power amplifier tube, the load capacity is strong,
impact resistance; it is not easy to damage, and the service life
is long. There is the complementary power supply of the city power
inverter; the city power charges the battery, and the inverter can
be suitable for various batteries on the market. Customers can
define and adjust various parameters by themselves.
Features
1. With MPPT solar charger controller built inside.
2. Wide PV input range, can work without battery.
3. Remote&Removable LCD control module with various communication such as WIFI/RS485/RS232 optional for SUNON PLUS.
4. Smart and intelligent pure sine wave, high frequency
technology,wall amounted design,light weighted and easy to operate.
5. Select-able charging current based on applications
6. Configurable AC/Solar input priority via LCD setting
7. Compatible with (LI Ion, LiFePo4 and etc.), batteries with BMS system and battery equalization
8. Auto restart while AC is recovering, auto charge and switch,
unattended operation 9. Smart battery charger and management for optimized battery
performance
10. High Efficient DC-To-AC Conversion.Minimizing Energy Loss and self
power consumption
11. around protection functions: Overload/short circuit protection/high
voltage/low battery voltage/high temperature,etc.
FAQ
1. Q: Can I have sample before formal order?
A: Sure, it will be warmly welcomed.
2. Q: What's the warranty:
A: 24 months for free.
3. Q: What's the payment methods?
A: Usually we accept T/T (Telegraphic Transfer)
4. Q: OEM is available?
A: Yes, OEM is welcomed.
