| Mode | BR-IN-1000 | BR-IN-1500 | BR-IN-2000 | BR-IN-3000 | BR-IN-4000 | BR-IN-5000 | BR-IN-6000 | BR-IN-7000 |
| rated power | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | 7000W |
| peak power | 3000W | 4500W | 6000W | 9000W | 12000W | 15000W | 18000W | 21000W |
| Input | Voltage | wide input voltage range(130V-280V AV) or narrow input voltage
range(160V-260V) is optional |
| Frequency | 45-65Hz |
| Ouput | Voltage | AC220V±3%(battery mode) |
| Frequency | 50/60Hz±1%(battery mode) |
| Output waveform | Sine wave |
| Efficiency of the whole machine | ＞85% |
| Battery type | Lead-acid,lithium-iron,gel,ternary and customized |
| Nominal voltage of external battery | 12/24/48VDC | 12/24/48VDC | 24/48VDC |
| Max charging current of mains supply | 80A(12VDC),40A(24VDC), 20A(48VDC) |
| Protection | Overloaded,short-circuit, over-temperature, over/low voltage of battery,
over/low voltage of mains supply protection |
| Conversion mode | Interactive 5MS(typical) |
| Overload capacity | Maintain 60 seconds when 110%-120%, maintain 10 seconds when 150% |
| Communication interface | RS-232(optional) |
| Operating environment | Temperature | 0-40℃ |
| Humidity | 10%-90% |
| L*W*H(mm) | 370*210*170mm | 485*230*210mm | 540*285*210mm |
| N.W(KG) | ? | ? | 16 | 21 | 27 | ? | ? | ? |
Features
1. With MPPT solar charger controller built inside.
2. Wide PV input range, can work without battery.
3. Remote&Removable LCD control module with various communication such as WIFI/RS485/RS232 optional for SUNON PLUS.
GS Series AC/Solar charging Off grid Hybrid Inverter 8KW,10KW and
12KW.

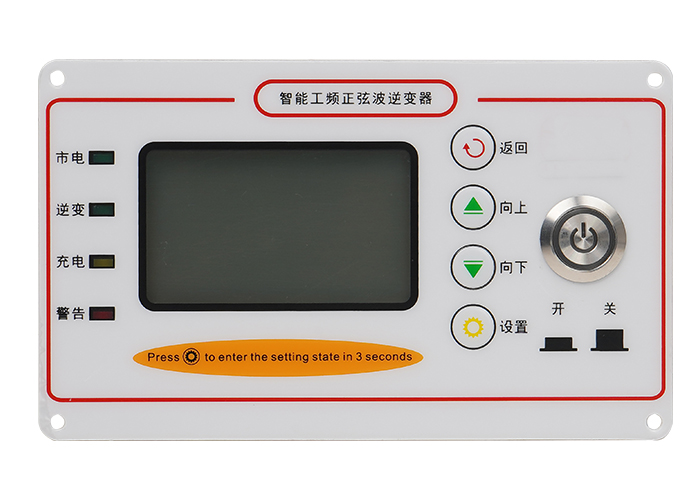

4. LED/LCD display ,Enhanced functions setting via LCD,Man-machine
intelligent design.
5. Built-in 40A/60A/120AMP optional MPPT solar charger controller.
6.Adjustable 5 stages AC charging current .AC charging also can be
closed.
7. LCD shows the solar capacity.
8. AC/DC priority modes can be set.
9. Generator restart signal (Dry contact).
10. 3 times peak power.Strong loading capacity.
11.Overload ,output short-circuit protection.
Benefits
Manufactured in an ISO 9001 certified plant
High efficiency , high safety , high reliability
5 years warranty
Advantages:
Compared with the high-frequency inverter and the power frequency
inverter, the power frequency inverter has the complementary
function of the city power, the UPS uninterrupted power supply
function; the electrical appliances are constantly powered. Because
the built-in high-power transformer (low-frequency transformer)
isolates the power amplifier tube, the load capacity is strong,
impact resistance; it is not easy to damage, and the service life
is long. There is the complementary power supply of the city power
inverter; the city power charges the battery, and the inverter can
be suitable for various batteries on the market. Customers can
define and adjust various parameters by themselves.
FAQ
1. Q: Can I have sample before formal order?
A: Sure, it will be warmly welcomed.
2. Q: What's the warranty:
A: 24 months for free.
3. Q: What's the payment methods?
A: Usually we accept T/T (Telegraphic Transfer)
4. Q: OEM is available?
A: Yes, OEM is welcomed.
