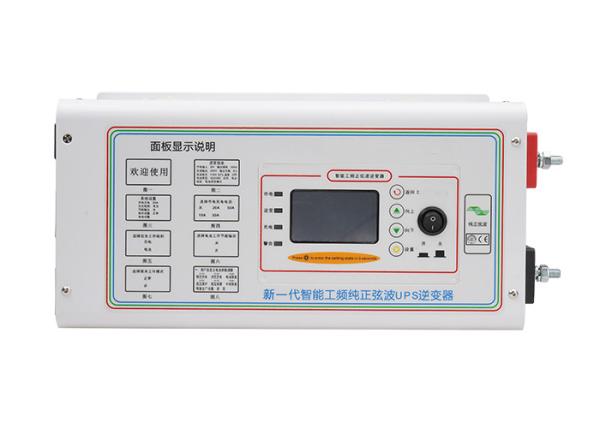

Bright New solar inverter mppt solar inverter 2kw 3kw 4kw 5kw solar
panel inverter off grid price
| Mode | BR-IN-1000 | BR-IN-1500 | BR-IN-2000 | BR-IN-3000 | BR-IN-4000 | BR-IN-5000 | BR-IN-6000 | BR-IN-7000 |
| rated power | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | 7000W |
| peak power | 3000W | 4500W | 6000W | 9000W | 12000W | 15000W | 18000W | 21000W |
| Input | Voltage | wide input voltage range(130V-280V AV) or narrow input voltage
range(160V-260V) is optional |
| Frequency | 45-65Hz |
| Ouput | Voltage | AC220V±3%(battery mode) |
| Frequency | 50/60Hz±1%(battery mode) |
| Output waveform | Sine wave |
| Efficiency of the whole machine | ＞85% |
| Battery type | Lead-acid,lithium-iron,gel,ternary and customized |
| Nominal voltage of external battery | 12/24/48VDC | 12/24/48VDC | 24/48VDC |
| Max charging current of mains supply | 80A(12VDC),40A(24VDC), 20A(48VDC) |
| Protection | Overloaded,short-circuit, over-temperature, over/low voltage of battery,
over/low voltage of mains supply protection |
| Conversion mode | Interactive 5MS(typical) |
| Overload capacity | Maintain 60 seconds when 110%-120%, maintain 10 seconds when 150% |
| Communication interface | RS-232(optional) |
| Operating environment | Temperature | 0-40℃ |
| Humidity | 10%-90% |
| L*W*H(mm) | 370*210*170mm | 485*230*210mm | 540*285*210mm |
| N.W(KG) | ? | ? | 16 | 21 | 27 | ? | ? | ? |
Features
Pure sine wave inverter
Build-pwm solar charge controller
Selectable input voltage range and frequency according to city
power
Charging currect is selectable according to your battery type
Configurable AC/Solar input priority via lcd setting
Compatible to main power or generator power
Auto restart while ac is recovering
Overload and short circuit protection
Smart charging system optimizes battery performance
Cold start function
OPERATION
1.Power ON/OFF
Once the unit has been properly installed and the batteries are
connected well, simply press On/Off switch (located on the button
of the case) to turn on the unit.
2.Operation and Display Panel
The operation and display panel, shown in below chart, is on the
front panel of the inverter. It includes three indicators, four
function keys and a LCD display; indicating the operating status
and input/output power
Advantages:
Compared with the high-frequency inverter and the power frequency
inverter, the power frequency inverter has the complementary
function of the city power, the UPS uninterrupted power supply
function; the electrical appliances are constantly powered. Because
the built-in high-power transformer (low-frequency transformer)
isolates the power amplifier tube, the load capacity is strong,
impact resistance; it is not easy to damage, and the service life
is long. There is the complementary power supply of the city power
inverter; the city power charges the battery, and the inverter can
be suitable for various batteries on the market. Customers can
define and adjust various parameters by themselves.
FAQ
1. Q: Can I have sample before formal order?
A: Sure, it will be warmly welcomed.
2. Q: What's the warranty:
A: 24 months for free.
3. Q: What's the payment methods?
A: Usually we accept T/T (Telegraphic Transfer)
4. Q: OEM is available?
A: Yes, OEM is welcomed.
